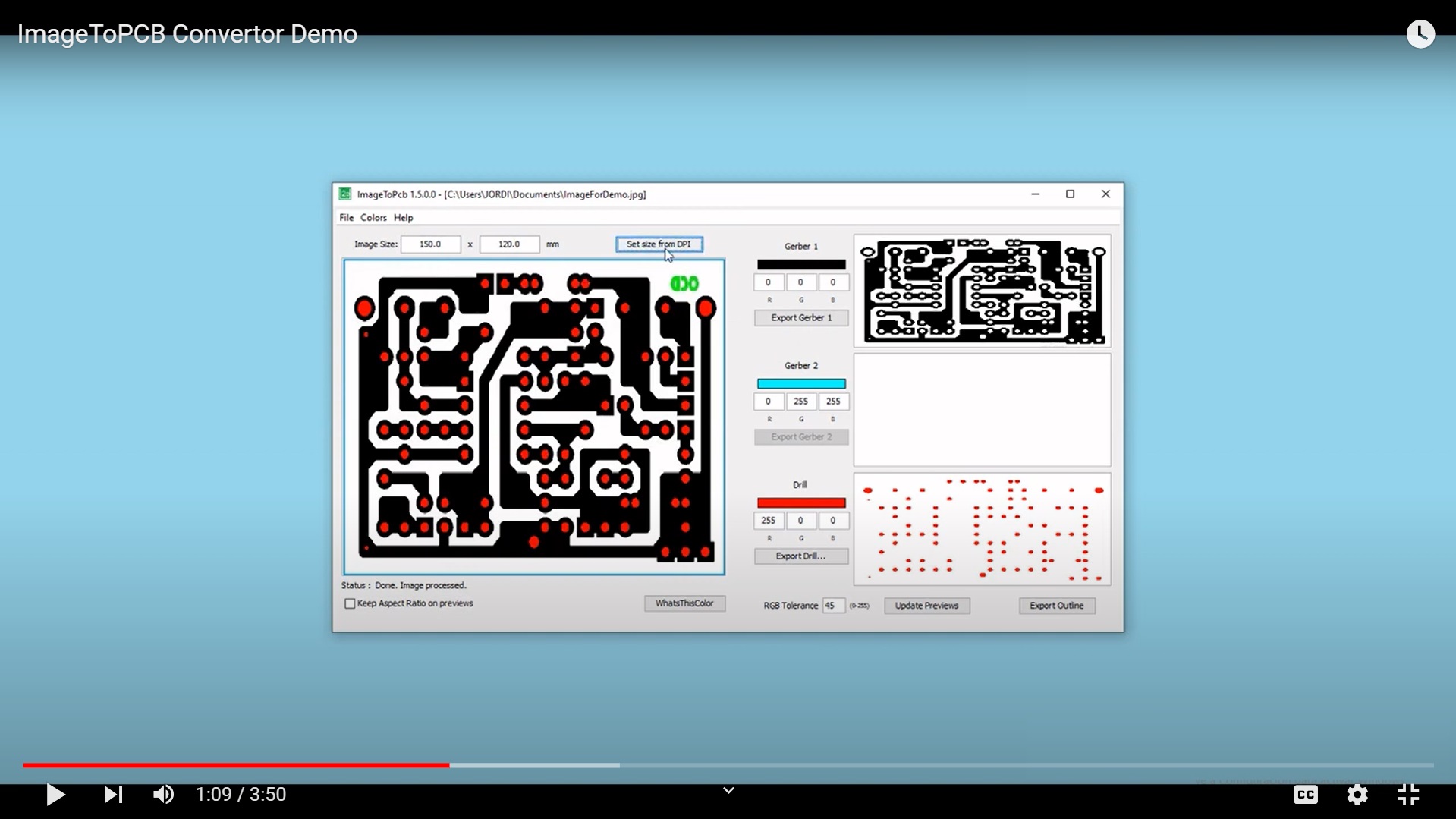

ImageToPCB and ImageToGerber video demonstration



Frequently Asked Questions:

• What is the difference between ImageToPCB and ImageToGerber?

ImageToPCB allows you to export gerber and drill files, while ImageToGerber only exports gerber files.

The drill export module in ImageToPCB identifies and groups similar drills and allows you to edit the final drill diameter for each group of drills.



• Which OS (operating system) are supported?

Both ImageToPCB and ImageToGerber run in all the major operative systems: Windows, Linux and Mac. The only requirement is to have JRE (Java Runtime Environment) installed.



• How can I check out my exported files? Is there any free gerber viewer?

There are some free/open source gerber viewers on the internet and online tools as well, I’d recommend the free online viewer from Ucamco, the company who owns gerber format as their viewer is totally trustworthy : https://gerber.ucamco.com/





If you have any more questions you can get in touch with us in the Contact section.
